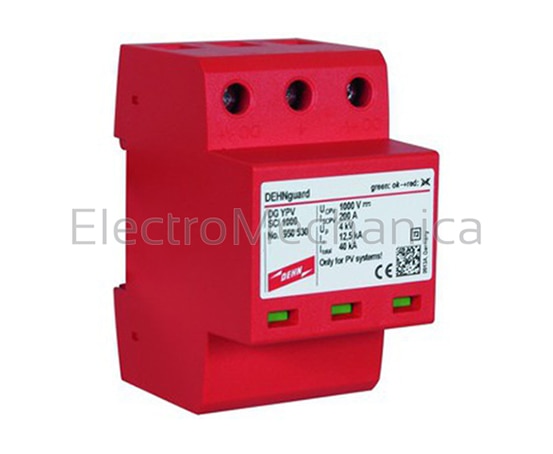

Photovoltaic (PV) surge protection devices
Due to their location solar panels and in many cases the inverters are connected to are exposed to and particularly prone to direct or indirect lightning strikes. As PV systems are directly connected to the electrical networks of buildings surge protection is essential.
Features:
- Short circuit interruption (SCI) technology for maximum safety in PV systems
- PV surge protection devices with plug-in or non plug-in cartridges for easy replacement
- Safe replacement of protection modules without arc formation due to integrated DC fuses
| DESCRIPTION | Photovoltaic surge protection device |
| TYPE | Class 2 |
| MAXIMUM PV VOLTAGE (UCPV) | ‰Â¤ 1000 V |
| (8/20 ¼) DC+/DC- (IMAX) | 25kA |
| VOLTAGE PROTECTION (Up) | ‰Â¤ 4kV |
| NUMBER OF POLES | 3 |
| CONFIGURATION | DC+/DC- |
| WIDTH IN 18 (MM) | 3 |
