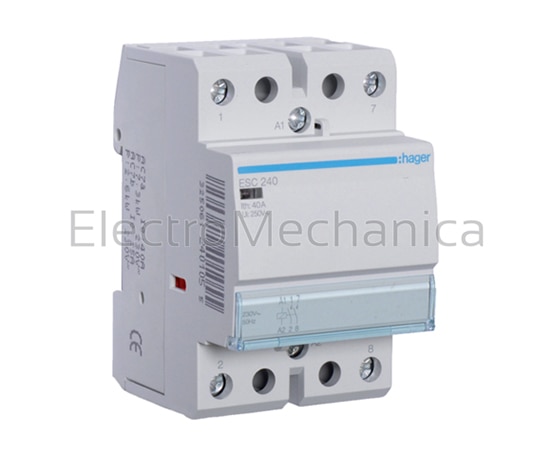

Modular contactors
Features:
- Four ratings: 16A, 25A, 40A, 63A
- Modular DIN rail mounting (same cut-out as MCBs)
- One and two module contactors feature economy low consumption, low heat dissipation coils
| RATED POWER AC-1 (A) | 40A |
| RATED POWER AC-3 (400V) | 7.8kW |
| COIL VOLTAGE | 230 VAC |
| DESCRIPTION | Modular standard contactor |
| CONTACT CONFIGURATION | 2NC |
| WIDTH IN 17.5MM | 3 |
| RATED OPERATIONAL VOLTAGE | 400 V |
| CONNECTION CROSS-SECTION RIGID CABLE | 4 /25mm² |
| CONNECTION CROSS-SECTION FLEXIBLE CABLE | 4 / 16mm² |
| OPERATING TEMPERATURE | -10 to 50 °C |
| FREQUENCY | 50 Hz |
