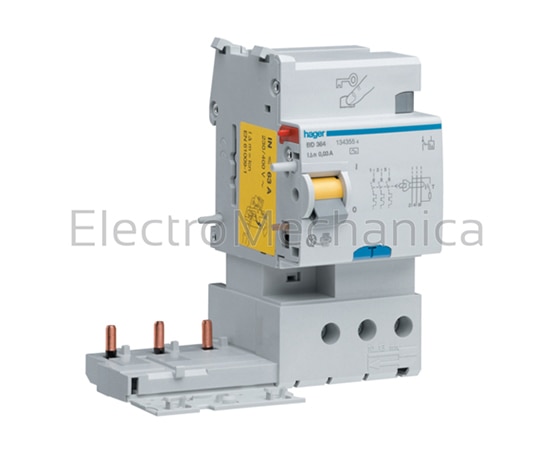

Add-on earth leakage devices for MCBs
For connection to all MCBs to be mounted to the right side of 2, 3, 4 pole circuit breakers. The combined unit provides effective protection against overloads, short circuits as well as earth leakage faults.
Features independent indication of earth fault or overload when tripped.
| CURRENT RATING | 63A |
| SENSITIVITY | 300 mA |
| DESCRIPTION | Earth leakage device |
| WIDTH IN 17.5MM | 3 |
| NUMBER OF POLES | 3 |
| RATED OPERATIONAL VOLTAGE | 230/400 V |
| OPERATING TEMPERATURE | -5 to 40 °C |
| FREQUENCY | 50 Hz |
| NEUTRAL POSITION | Left |
