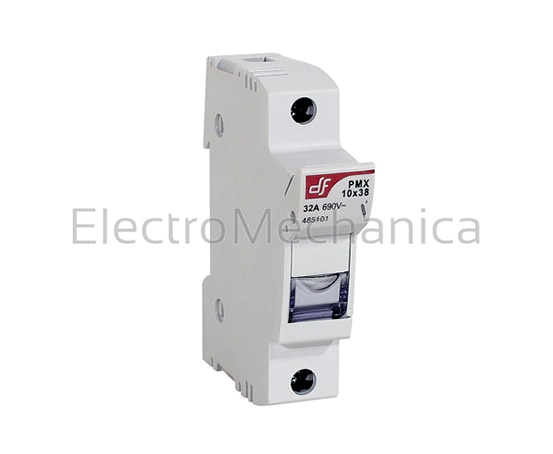

PMX series modular fuse holders
Features:
- Optimized ventilation zones for improved heat dissipation
- Modular, compact fuse holder DIN rail mountable for cylindrical fuses
- Incorporated hinged transparent label holder for positive circuit identification
- High temperature resistance, self-extinguishing-halogen free body / silver plated copper contacts
| SERIES | PMX series |
| RATED CURRENT | 32A |
| RATED VOLTAGE | 690 VAC/750 VDC |
| NUMBER OF POLES | 1 |
| DESCRIPTION | PMX industrial cylindrical fuse holder with 120 – 690V neon indication |
| DIMENSIONS (MM) | (H) 88.8 x (D) 58 |
| WIDTH IN 17.5MM | 1 |
| FOR FUSE (MM) | 10 x 38 |
| MOUNTING | DIN rail |
| CONFORMITY TO STANDARDS | IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-3, CSA C22.2 4248-1, UL4248-2 |
