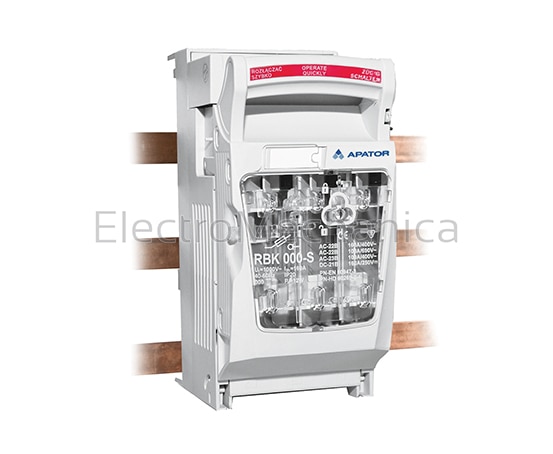

RBK series – NH-fuse switch disconnectors (for panel mounting)
RBK fuse switch disconnectors designed for distribution of electricity and protection of electrical equipment against short-circuits and overloads with industrial fuse links. They are conforming to IEC/EN 60947-1, IEC/EN 60947-3 standards. Intended for installation in low voltage distribution boards, cable and metering cabinets.
- Degree of touch protection: IP 20 – (IP30 for RBP and RBK 1 units)
- Lid lock and lid seal (with optional accessories)
- Voltage test can be performed through test holes in fuse link cover
Fuse switch disconnectors for installation on 60mm busbar system
- Rated operational voltage Un: 690 V
- Insulation voltage Ui: 1000 V
- Rated impulse withstand voltage Uimp: 8 kV
- Termination: Bottom of switch (top terminals available on request)
| SERIES | RBK 00 pro-SD-M |
| NUMBER OF POLES | 3 |
| FUSE SIZE | NH00 |
| MAXIMUM CURRENT | 160A |
| CABLE TERMINAL | M8 |
| DESCRIPTION | Fuse switch disconnectors for installation on 60mm busbar system |
| RATED OPERATIONAL VOLTAGE | 690V |
| MOUNTING | Panel mount |
| DIMENSIONS | (H) 214 x (W) 106 x (D) 110 |
