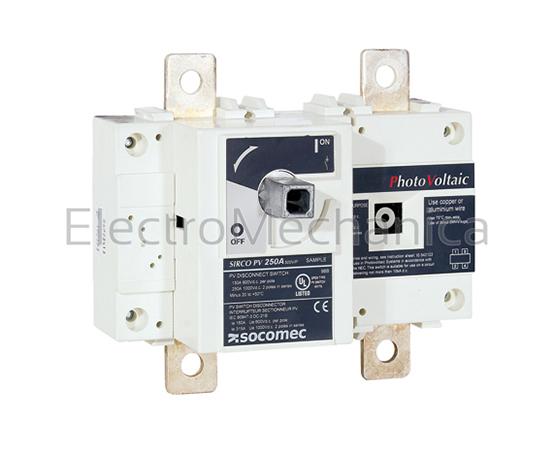

SIRCO photovoltaic PV manually operated switches
SIRCO PV solar disconnect switches are specifically tested for in applications with high performance characteristics in severe environments, far exceeding requirements of latest industry standards.
Features:
- Up to 1500 VDC
- Fully visualised breaking
- Patented switching technology
- Conformity to: IEC/EN 60947-3/VDE 0660-107 / IEC 60364-4-410 / IEC364-7-712
- Available on request : larger sizes up to 2000A/ double switches (to mount two different PV circuit simultaneously
| SERIES | SIRCO PV series |
| CURRENT | 160A |
| CONTACT CONFIGURATION | 1P+, 1P- |
| VOLTS DC | 1000 VDC |
| DESCRIPTION | SIRCO PV photovoltaic switch |
| DIMENSIONS (MM) | (H) 160 x (W) 180 x (D) 95 |
| CONFORMITY TO STANDARDS | IEC/EN 60947-3/VDE 0660-107 / IEC 60364-4-410 / IEC364-7-715 |
