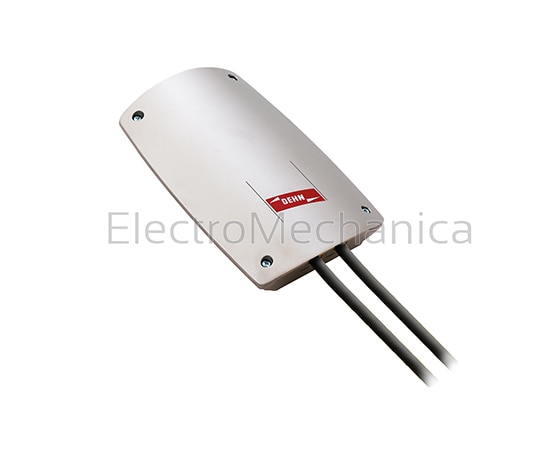

DEHNpatch outdoor type 2
Complete surge protection unit to protect surveillance camera’s, PoE ++ 4PPoE and other GBit Ethernet applications from damage due to surges. The IP65 rated enclosure permits safe to use outdoor.
- Easy mounting: even at great heights (universal brackets for poles and wall mounting)
- Lighting current discharge capacity (10/350 ¼)
- IP protection: 65
| SERIES | DEHNpatch |
| DESCRIPTION | Universal arrestor for industrial Ethernet,POE applications |
| NOMINAL VOLTAGE (Un) | 24 V |
| VOLTAGE L-L (Up) | ≤ 52 V |
| (8/20 ¼) PER LINE (LIMP) | 10 kA |
| (10/350 ¼) PER LINE (LIMP) | 2.5 kA |
| NUMBER OF POLES | 4 |
| CONFIGURATION | line-PG |
| WIDTH IN 18 (MM) | 12mm |
